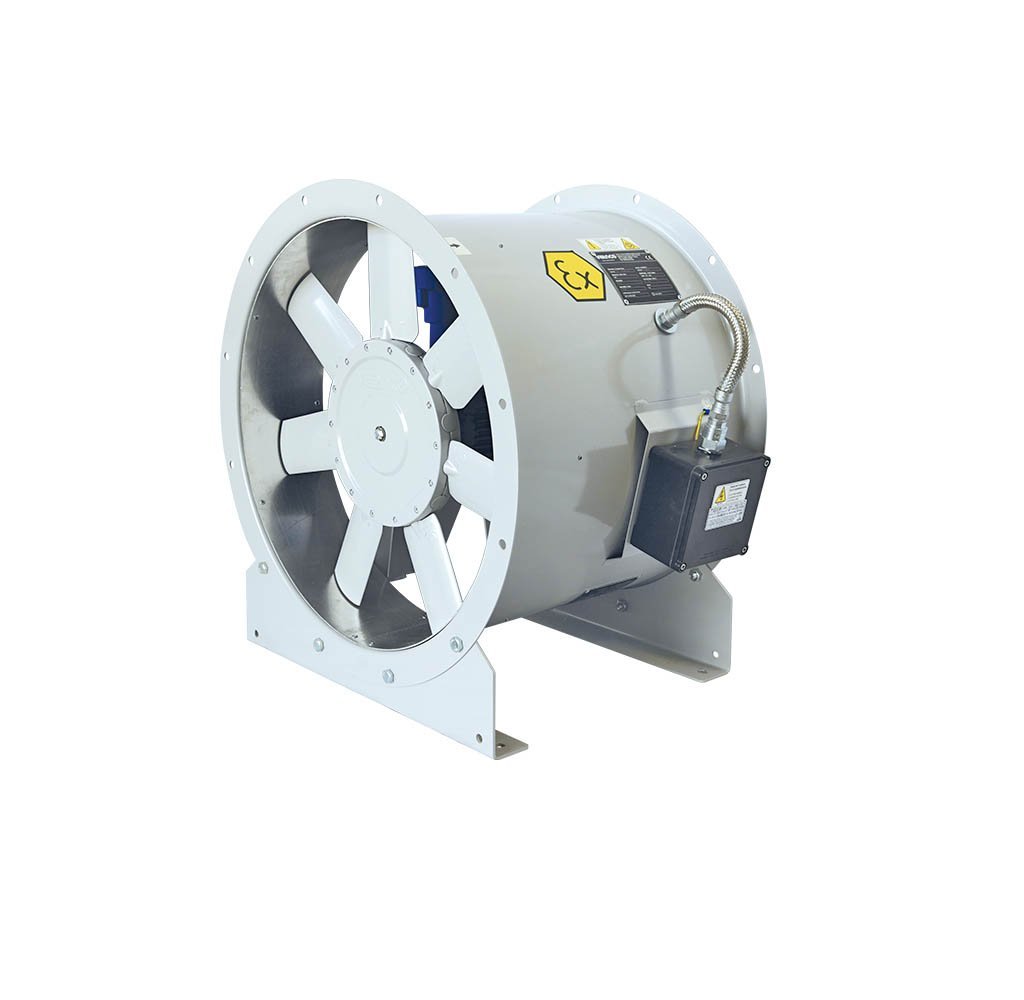

VAX-EX Explosion Proof Axial Fans

  • In compliance with the ATEX 2014/34/EU, EN 14986 : 2017,EN 60079-0 : 2013, EN 13463-1 : 2009, EN 13463-5 :2011 Standards
  • Full size from Ø 500 mm to Ø 1.400 mm diameter
  • Hot dip galvanized sheet metal fan casing
  • Cast aluminum adjustable blade angle impellers
  • Aerodynamic profiled impellers allow high efficiency and low noise
  • Die cast aluminum alloy fan hubs
  • Optimum capacity obtained by different blade-hub combinations besides adjustable blade angels
  • Ex-proof certified IP 65 terminal box is placed out of the casing
  • Ex d llB T4 electrical motors with IP 55 and F class insulation
  • 230 V, 1 phase, 50 Hz and 380 V, 3 phase, 50 Hz
  • Operating temperature between -20°C and 40°C

*** The information here is not definitive and is for informational purposes only. For exact information, please visit the manufacturer’s website.
